Power B is a PAC Controller (Programmable Automation Controller) specifically made for machines produced on a large scale, equipped with up to three interpolated axes.

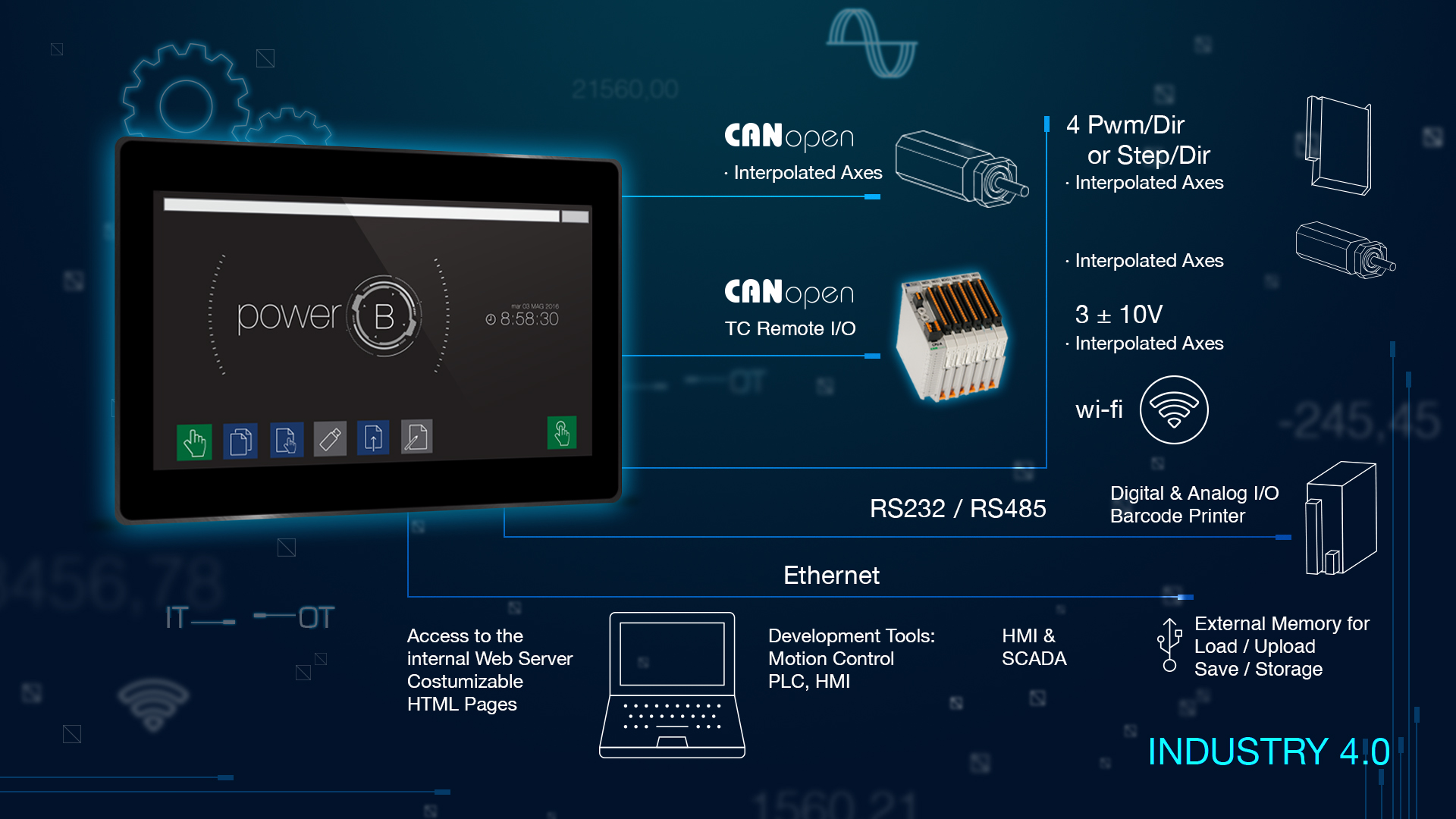

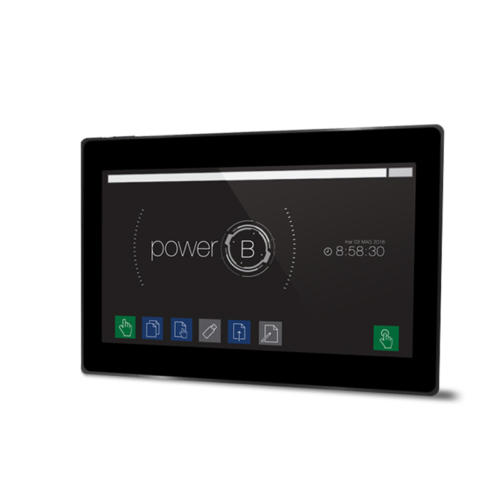

It is engineered in a compact panel container with a 7” touch screen display, and if requested, it can also be equipped with a 10” display up until 1280×800 pixels. Its basic configuration (16+16 digital I/O, five analog inputs, three 5V Line Driver encoder inputs, three Step/Dir outputs and three +/-10V analog outputs) can be expanded via CANopen or by adding a custom-made option tab according to specific application needs.
Power B is suitable for cartesian axes pick&place machines, palletizers, small CNC pantographs for milling, turning, tapping, drilling, grinding, flat glass cutting, sanding machines, metal sheet feeders, bar feeders for automatic turning machines, slotting machines, edgebanders, moulders, planing machines, etc.
Industrial applications

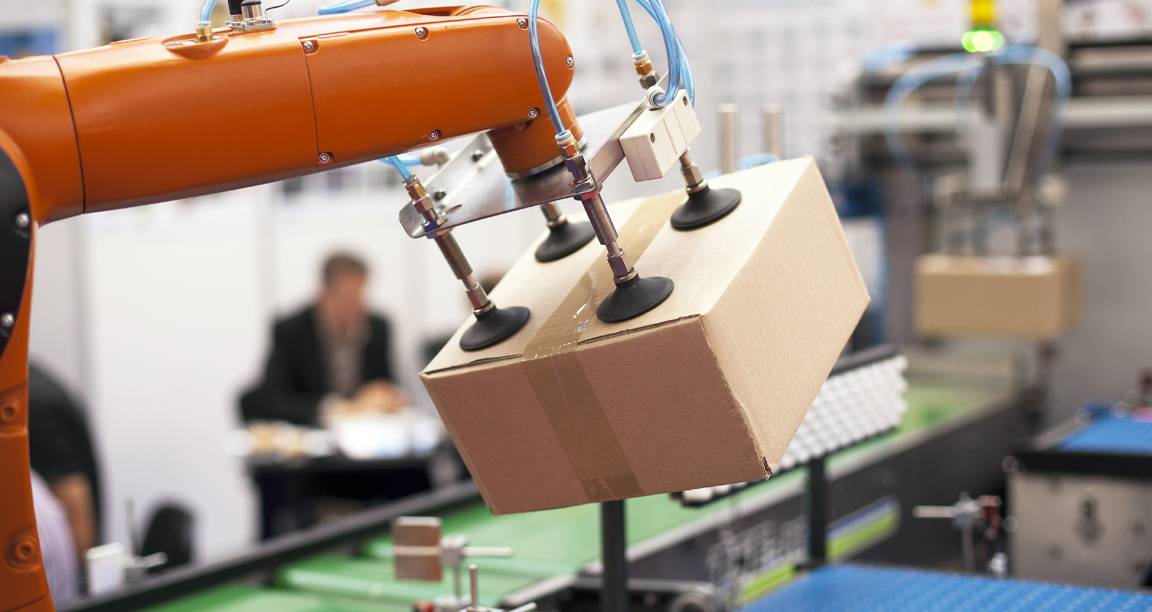

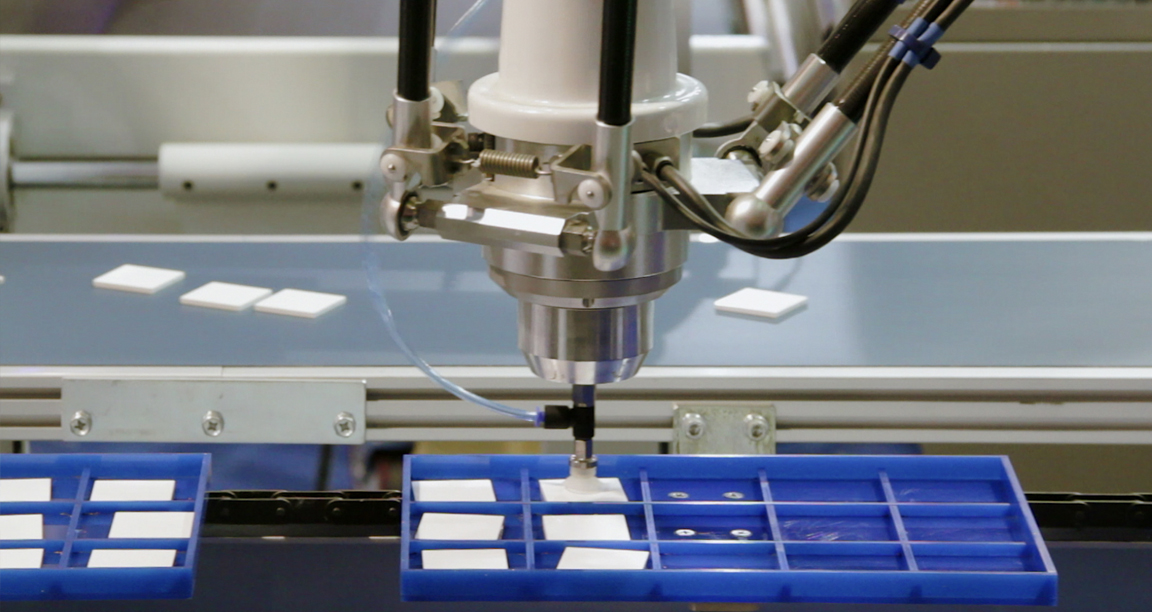

- Cartesian axes pick&place machines
- Palletizers
- Small pantographs
- Flat glass cutting
- Sanding machines
- Metal sheet feeders
- Bar feeders for automatic turning machines
- Slotting machines
- Edgebanders
- Moulders
- Planing machines
Documentation
Configurations available
Do you need help?
Our team of consultants and technicians is available to answer your questions.
SOFTWARE PORTFOLIO
Tex Automation has a large number of software tools for appication developing on Power series’ controllers and a large number of application softwares, customizable according to your factory’s productive needs.
Graphic and text editing software, debug programs, firmware management, ISO archives management, web interface; all these programs are the result of Tex’s experience in many fields of industrial automation and they respond to concrete needs.
