TC remote I/O

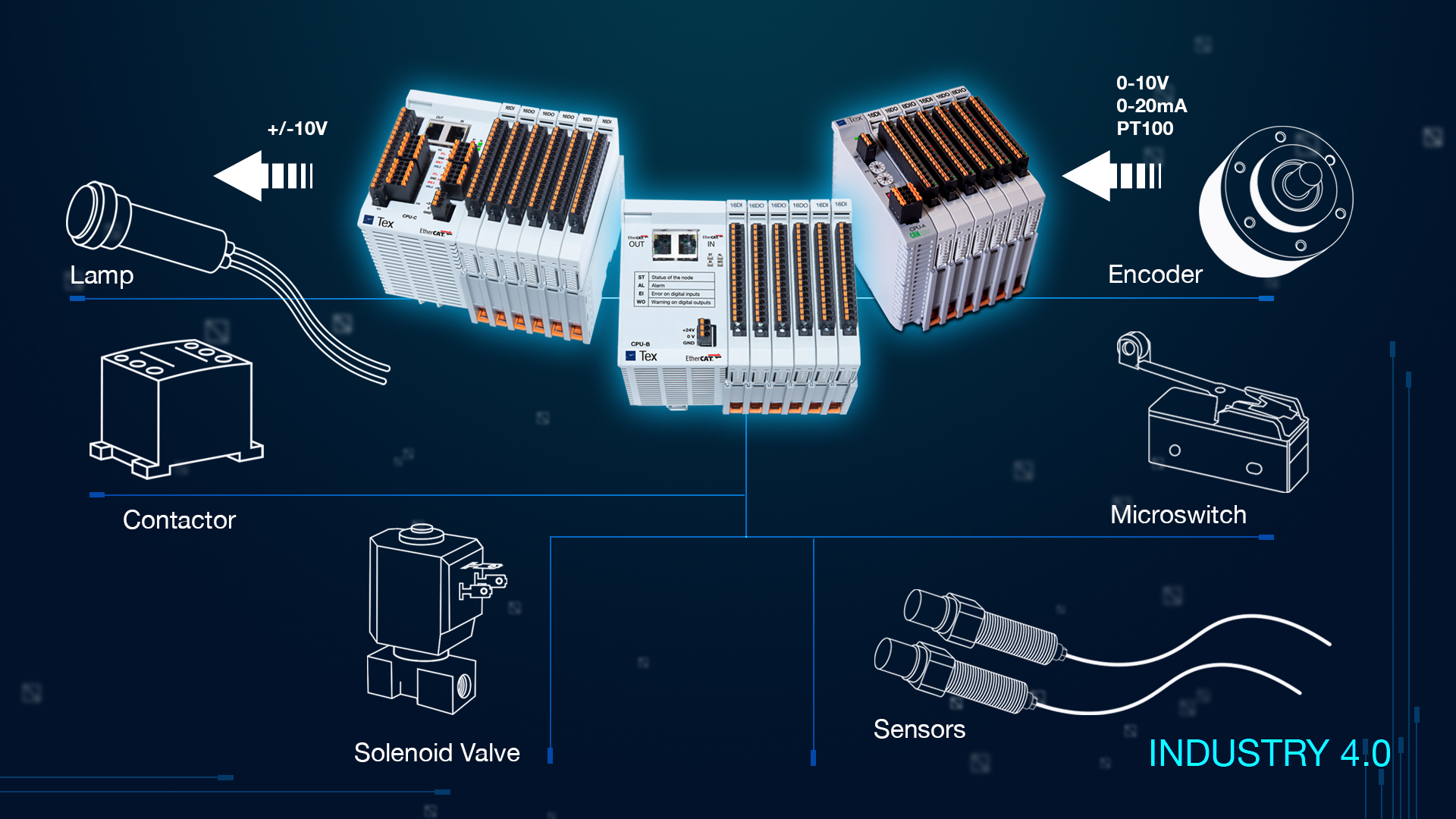

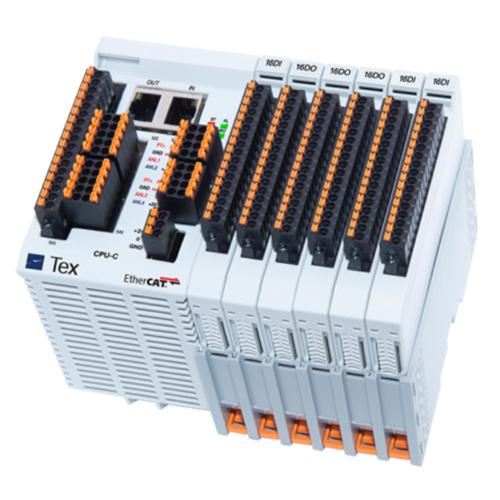

TC REMOTE I/O is a modular system, with DIN guide fixing, consisting of three types of couplers for CANopen or EtherCAT, plus three types of 16 points digital I/O modules. One of the two EtherCAT couplers is equipped with: 8+8 fast digital I/O (minimum feedback time= 1 ms), four 12 bit analog inputs, two +/-10V analog outputs and two interfaces for 5V Line Driver ABZ incremental encoders.

If TC Remote I/O is combined with Power controllers its available resources are seen, programming wise, as local resources to the PAC; in this way Tex Automation can supply the client his complete network project, with both the configuration files and the synoptic scheme with all the available resources.

Industrial applications

  • CNC machines for milling
  • Delta robots
  • Scara robots

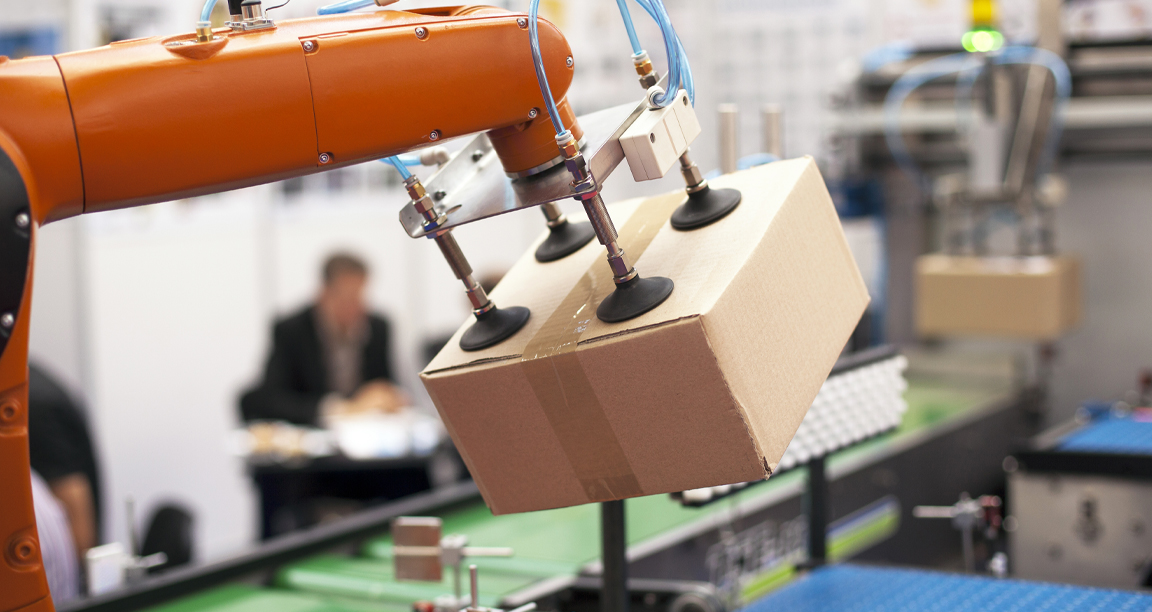

  • Cartesian robots
  • Tangent Cutting

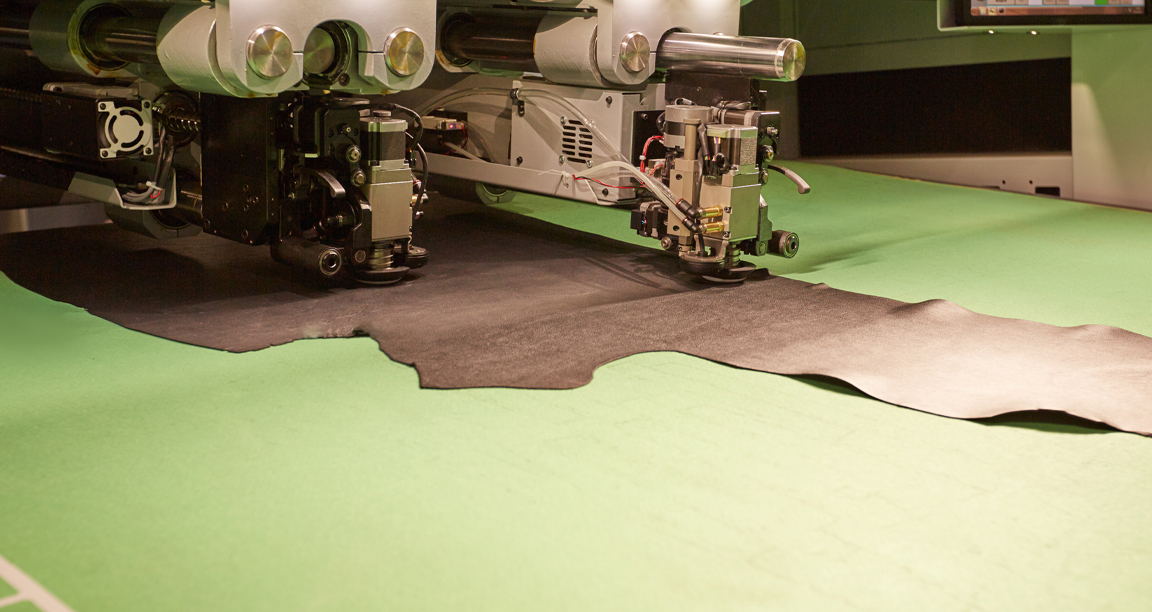

  • Tissue Cutting
  • Glass Cutting
  • Turning
  • Tapping
  • Grinding

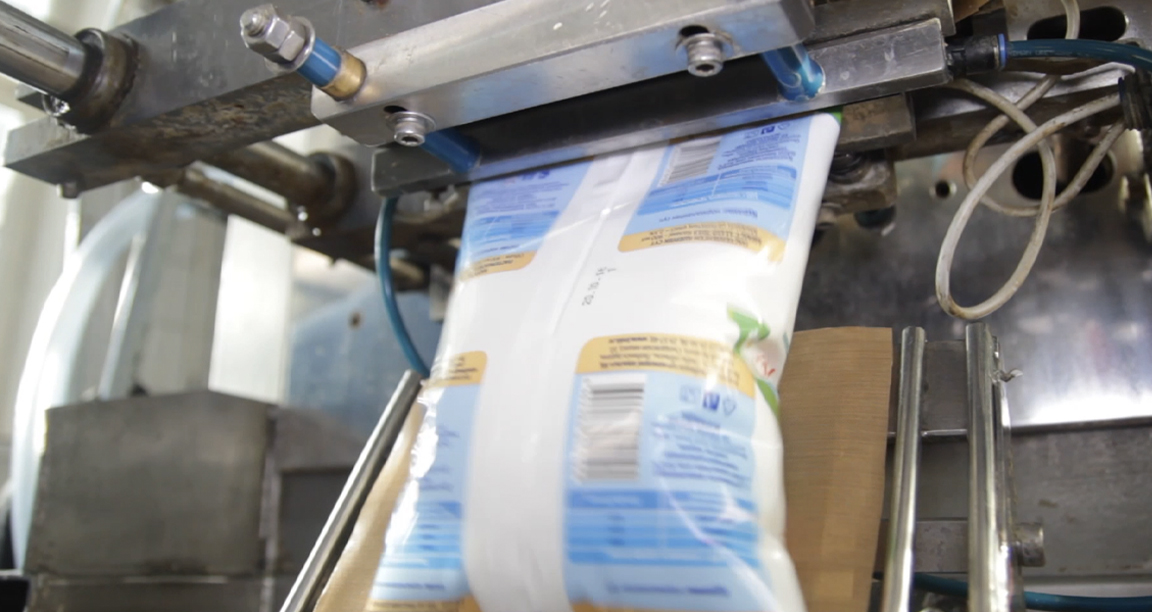

  • Packaging machines
  • Special machines

Documentation

Applications

Do you need help?

Our team of consultants and technicians is available to answer your questions.

SOFTWARE PORTFOLIO

Tex Automation has a large number of software tools for appication developing on Power series’ controllers and a large number of application softwares, customizable according to your factory’s productive needs.

Graphic and text editing software, debug programs, firmware management, ISO archives management, web interface; all these programs are the result of Tex’s experience in many fields of industrial automation and they respond to concrete needs.
